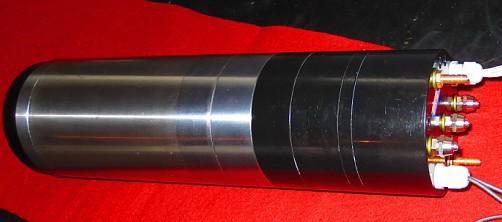

110-HNZ24Z3.0

cat: | updatetime：2014-01-23 13:18:53 | hits：0

Brand name: Haina

Spindle type: 110-HNZ24Z3.0

Function: used in cnc router and cnc wood engraving machine

Power:  3.0KW

Joint of Nose: ISO 20

Noise：66db

Voltage: 380v

Shocking:1.0μm

Current: 7A

Diameter:110mm

Length:415mm

Cooling：Grease

Speed:   24000rpm

Temperature control：22-25℃

Frenquency:  600Hz

Torque: 0.96N.m

Bearings:7006*2  7004*2
